Plot a triangle pool — plot.wkpool

Draws every triangle with one call to graphics::polygon(), indexing the vertex pool directly (triangles separated by NA). This avoids building geometry: on 40,000 triangles it draws in a fraction of a second, where casting to wk polygons and plotting those takes over a minute.

Usage

# S3 method for class 'wkpool_tri'
plot(x, col = NULL, border = "black", add = FALSE, xlab = "x", ylab = "y", ...)

Arguments

x: A wkpool_tri.
col: Fill colour(s), recycled over triangles. If NULL (default), triangles are coloured by feature using the same palette as plot.wkpool().
border: Border colour(s) for triangle edges, NA for none.
add: If TRUE, draw on the current plot.
xlab, ylab: Axis labels when add = FALSE.
...: Further arguments passed to plot.default() when add = FALSE.

Value

Invisibly returns x.

Examples

x <- wk::as_wkb(c(
  "POLYGON ((0 0, 1 0, 1 1, 0 1, 0 0), (0.2 0.3, 0.2 0.5, 0.4 0.5, 0.2 0.3))",
  "POLYGON ((1 0, 2 0, 2 1, 1 1, 1 0))"
))
if (requireNamespace("decido", quietly = TRUE)) {
  tri <- pool_triangulate(establish_topology(x))

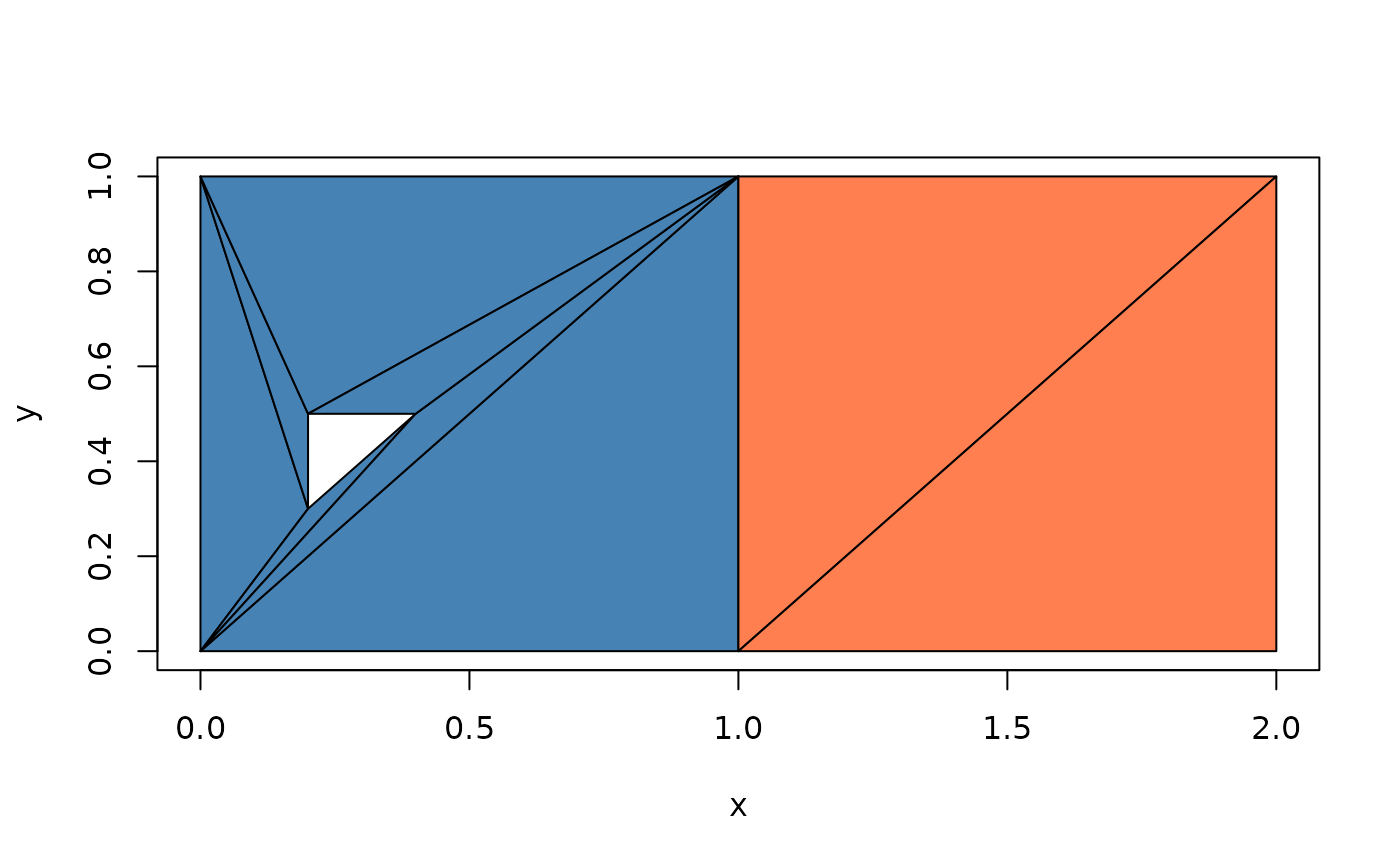

  plot(tri)

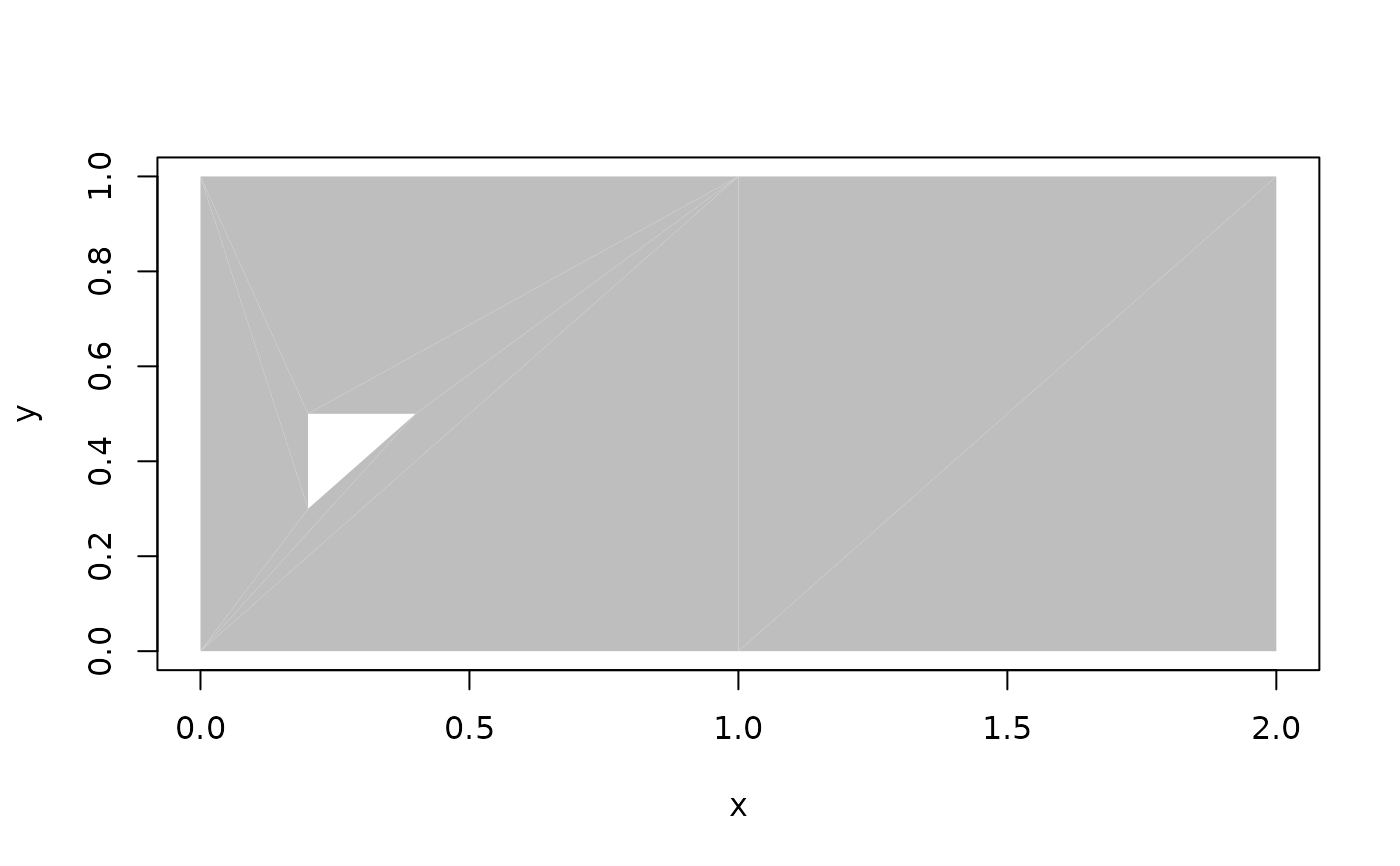

  plot(tri, col = "grey", border = NA)
}
