Cell Operations

library(vaster)

Overview

Cell operations are at the heart of raster grid logic. This vignette covers:

Converting between cell indices and x,y coordinates
Converting between cell indices and row/column positions
Working with extents from cells
Finding cells within an extent

All functions use the standard vaster convention: dimension is c(ncol, nrow) and extent is c(xmin, xmax, ymin, ymax).

Cell Indexing

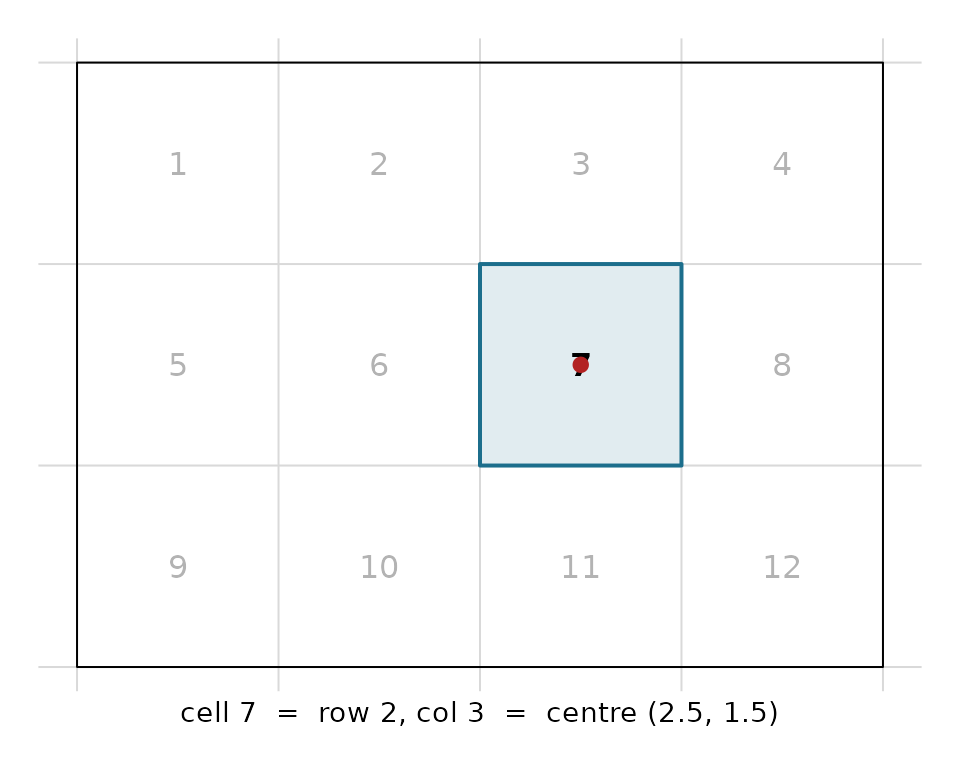

Cells are numbered starting from 1 at the top-left corner, proceeding row-wise (left-to-right, then top-to-bottom):

 1  2  3  4
 5  6  7  8
 9 10 11 12

## define a simple 4x3 grid
dimension <- c(4, 3)   # 4 columns, 3 rows
extent <- c(0, 4, 0, 3) # xmin=0, xmax=4, ymin=0, ymax=3

n_cell(dimension)
#> [1] 12
n_col(dimension)
#> [1] 4
n_row(dimension)
#> [1] 3

Cells ↔︎ Coordinates

From cells to coordinates

Use xy_from_cell() to get the centre coordinates of cells:

## single cell
xy_from_cell(dimension, extent, 1)
#>      [,1] [,2]
#> [1,]  0.5  2.5

## multiple cells
xy_from_cell(dimension, extent, c(1, 4, 9, 12))
#>      [,1] [,2]
#> [1,]  0.5  2.5
#> [2,]  3.5  2.5
#> [3,]  0.5  0.5
#> [4,]  3.5  0.5

## all cells
xy_from_cell(dimension, extent, seq_len(n_cell(dimension)))
#>       [,1] [,2]
#>  [1,]  0.5  2.5
#>  [2,]  1.5  2.5
#>  [3,]  2.5  2.5
#>  [4,]  3.5  2.5
#>  [5,]  0.5  1.5
#>  [6,]  1.5  1.5
#>  [7,]  2.5  1.5
#>  [8,]  3.5  1.5
#>  [9,]  0.5  0.5
#> [10,]  1.5  0.5
#> [11,]  2.5  0.5
#> [12,]  3.5  0.5

For just x or y coordinates:

x_from_cell(dimension, extent, 1:4)
#> [1] 0.5 1.5 2.5 3.5
y_from_cell(dimension, extent, c(1, 5, 9))
#> [1] 2.5 1.5 0.5

From coordinates to cells

Use cell_from_xy() to find which cell contains given coordinates:

## coordinates at cell centres
xy <- cbind(c(0.5, 1.5, 2.5), c(2.5, 1.5, 0.5))
cell_from_xy(dimension, extent, xy)
#> [1]  1  6 11

## coordinates outside the grid return NA
xy_outside <- cbind(c(-1, 5), c(1.5, 1.5))
cell_from_xy(dimension, extent, xy_outside)
#> [1] NA NA

## coordinates on cell boundaries go to the cell below/right
## except at the grid edge where they go to the last cell
xy_edge <- cbind(c(1.0, 4.0), c(2.0, 0.0))
cell_from_xy(dimension, extent, xy_edge)
#> [1]  6 12

Cells ↔︎ Row/Column

From cells to row/column

## get row and column for cells
rowcol_from_cell(dimension, extent, 1:12)
#>       row col
#>  [1,]   1   1
#>  [2,]   1   2
#>  [3,]   1   3
#>  [4,]   1   4
#>  [5,]   2   1
#>  [6,]   2   2
#>  [7,]   2   3
#>  [8,]   2   4
#>  [9,]   3   1
#> [10,]   3   2
#> [11,]   3   3
#> [12,]   3   4

For just row or column:

row_from_cell(dimension, 1:12)
#>  [1] 1 1 1 1 2 2 2 2 3 3 3 3
col_from_cell(dimension, 1:12)
#>  [1] 1 2 3 4 1 2 3 4 1 2 3 4

Note that row_from_cell() and col_from_cell() only need dimension since row/column positions don’t depend on extent.

From row/column to cells

Get cells for specific row/column combinations:

## single cell at row 2, column 3
cell_from_row_col(dimension, row = 2, col = 3)
#> [1] 7

## multiple cells (vectorized, with recycling)
cell_from_row_col(dimension, row = 1:3, col = 1:3)  # diagonal cells
#> [1]  1  6 11

Get all cells in specific rows or columns:

## all cells in row 2
cell_from_row(dimension, 2)
#> [1] 5 6 7 8

## all cells in column 3
cell_from_col(dimension, 3)
#> [1]  3  7 11

Get the cross-product of rows and columns (all combinations):

## all cells in rows 1-2 AND columns 2-3
cell_from_rowcol_combine(dimension, row = 1:2, col = 2:3)
#> [1] 2 3 6 7

Rows/Columns ↔︎ Coordinates

Convert directly between row/column indices and coordinates:

## x coordinate of each column (centre)
x_from_col(dimension, extent, 1:4)
#> [1] 0.5 1.5 2.5 3.5

## y coordinate of each row (centre)
y_from_row(dimension, extent, 1:3)
#> [1] 2.5 1.5 0.5

## which column contains this x coordinate
col_from_x(dimension, extent, c(0.5, 2.5, 3.9))
#> [1] 1 3 4

## which row contains this y coordinate
row_from_y(dimension, extent, c(2.5, 1.5, 0.1))
#> [1] 1 2 3

Cells ↔︎ Extents

Extent from cells

Get the bounding box that covers a set of cells:

## extent of a single cell
extent_from_cell(dimension, extent, 1)
#> [1] 0 1 2 3

## extent covering multiple cells
extent_from_cell(dimension, extent, c(1, 4))  # top row
#> [1] 0 4 2 3
extent_from_cell(dimension, extent, c(1, 12)) # full grid
#> [1] 0 4 0 3

Cells from extent

Find all cells within a given extent:

## cells within a sub-extent
sub_extent <- c(1, 3, 1, 2)  # xmin=1, xmax=3, ymin=1, ymax=2
cell_from_extent(dimension, extent, sub_extent)
#> [1] 6 7

The extent is automatically aligned to cell boundaries before finding cells.

Handling Invalid Inputs

Functions return NA for invalid inputs:

## invalid cell numbers
xy_from_cell(dimension, extent, c(0, 13, -1))
#>      [,1] [,2]
#> [1,]  3.5  3.5
#> [2,]  0.5 -0.5
#> [3,]  2.5  3.5

## coordinates outside grid
cell_from_xy(dimension, extent, cbind(c(-1, 10), c(1, 1)))
#> [1] NA NA

## invalid row/column
cell_from_row_col(dimension, row = 0, col = 1)
#> [1] NA
cell_from_row_col(dimension, row = 4, col = 1)  # only 3 rows exist
#> [1] NA

Practical Example: Sampling Grid Points

Create a stratified sample by selecting one random point from each cell:

set.seed(42)
dimension <- c(5, 4)
extent <- c(0, 10, 0, 8)

## get cell centres
centres <- xy_from_cell(dimension, extent, seq_len(n_cell(dimension)))

## add random jitter within each cell
res <- c(x_res(dimension, extent), y_res(dimension, extent))
jitter_x <- runif(n_cell(dimension), -res[1]/2, res[1]/2)
jitter_y <- runif(n_cell(dimension), -res[2]/2, res[2]/2)

sample_points <- cbind(
  x = centres[, 1] + jitter_x,
  y = centres[, 2] + jitter_y
)

head(sample_points)
#>             x        y
#> [1,] 1.829612 7.808063
#> [2,] 3.874151 6.277420
#> [3,] 4.572279 7.977783
#> [4,] 7.660895 7.893336
#> [5,] 9.283491 6.164875
#> [6,] 1.038192 5.028424

## verify all points fall in expected cells
all(cell_from_xy(dimension, extent, sample_points) == seq_len(n_cell(dimension)))
#> [1] TRUE
