wkpool

Vertex pool topology for geometry handled by wk.

Design philosophy

Simple features throws away topology — every polygon stores its own coordinates, shared boundaries are duplicated, and expensive operations (GEOS) are needed to rediscover this structure which is then again discarded.

wkpool takes a different approach:

  • Segments are atomic: Everything is edges (vertex pairs). Polygons, linestrings, meshes — all just segments with different grouping.
  • Vertices live in a pool: Coordinates stored once, referenced by integer ID (.vx).
  • Observe, don’t correct: establish_topology() represents the truth of your input. Snapping/fixing is a separate, explicit decision.
  • Topology is discoverable: merge_coincident() finds shared vertices. Shared boundaries, neighbour relations — they emerge from the data.
  • Feature provenance: Segments track which feature they came from (.feature), enabling adjacency and boundary queries.

Installation

From CRAN use

For development version use

#install.packages("remotes")
remotes::install_github("hypertidy/wkpool")

Usage

library(wkpool)
library(wk)

# Any wk-handleable geometry
#x <- wk::as_wkb(<wk-compatible>)
x <- wk::as_wkb(c(
   paste0(
     "MULTIPOLYGON (((0 0, 0 1, 0.75 1, 1 0.8, 0.5 0.7, ",
     "0.8 0.6, 0.69 0, 0 0), (0.2 0.2, 0.5 0.2, ",
     "0.5 0.4, 0.3 0.6, 0.2 0.4, 0.2 0.2)))"),
 "MULTIPOLYGON (((0.69 0, 0.8 0.6, 1.1 0.63, 1.23 0.3, 0.69 0)))"
))

# Establish topology (no coordinate merging yet)
pool <- establish_topology(x)

# What do we have?
topology_report(pool)
#> $n_vertices_raw
#> [1] 19
#>
#> $n_vertices_unique
#> [1] 14
#>
#> $n_duplicate_vertices
#> [1] 5
#>
#> $n_near_miss_vertices
#> [1] 0
#>
#> $n_segments
#> [1] 16
#>
#> $n_shared_edges
#> [1] 1
#>
#> $n_features
#> [1] 2

# Merge coincident vertices (exact match)
merged <- merge_coincident(pool, tolerance = 0)

# Find shared boundaries
shared <- find_shared_edges(merged)

# Internal boundaries (edges shared by exactly 2 features)
internal <- find_internal_boundaries(merged)

# Neighbour relations
neighbours <- find_neighbours(merged, type = "edge")    # share a boundary
neighbours_v <- find_neighbours(merged, type = "vertex") # share any vertex

# Access the raw structure
pool_vertices(merged)  # data.frame: .vx, x, y
#>    .vx    x    y
#> 1    1 0.00 0.00
#> 2    2 0.00 1.00
#> 3    3 0.75 1.00
#> 4    4 1.00 0.80
#> 5    5 0.50 0.70
#> 6    6 0.80 0.60
#> 7    7 0.69 0.00
#> 9    8 0.20 0.20
#> 10   9 0.50 0.20
#> 11  10 0.50 0.40
#> 12  11 0.30 0.60
#> 13  12 0.20 0.40
#> 17  13 1.10 0.63
#> 18  14 1.23 0.30
pool_segments(merged)  # data.frame: .vx0, .vx1, .feature
#>    .vx0 .vx1 .feature .path
#> 1     1    2        1     1
#> 2     2    3        1     1
#> 3     3    4        1     1
#> 4     4    5        1     1
#> 5     5    6        1     1
#> 6     6    7        1     1
#> 7     7    1        1     1
#> 8     8    9        1     2
#> 9     9   10        1     2
#> 10   10   11        1     2
#> 11   11   12        1     2
#> 12   12    8        1     2
#> 13    7    6        2     3
#> 14    6   13        2     3
#> 15   13   14        2     3
#> 16   14    7        2     3

Shared boundaries and holes

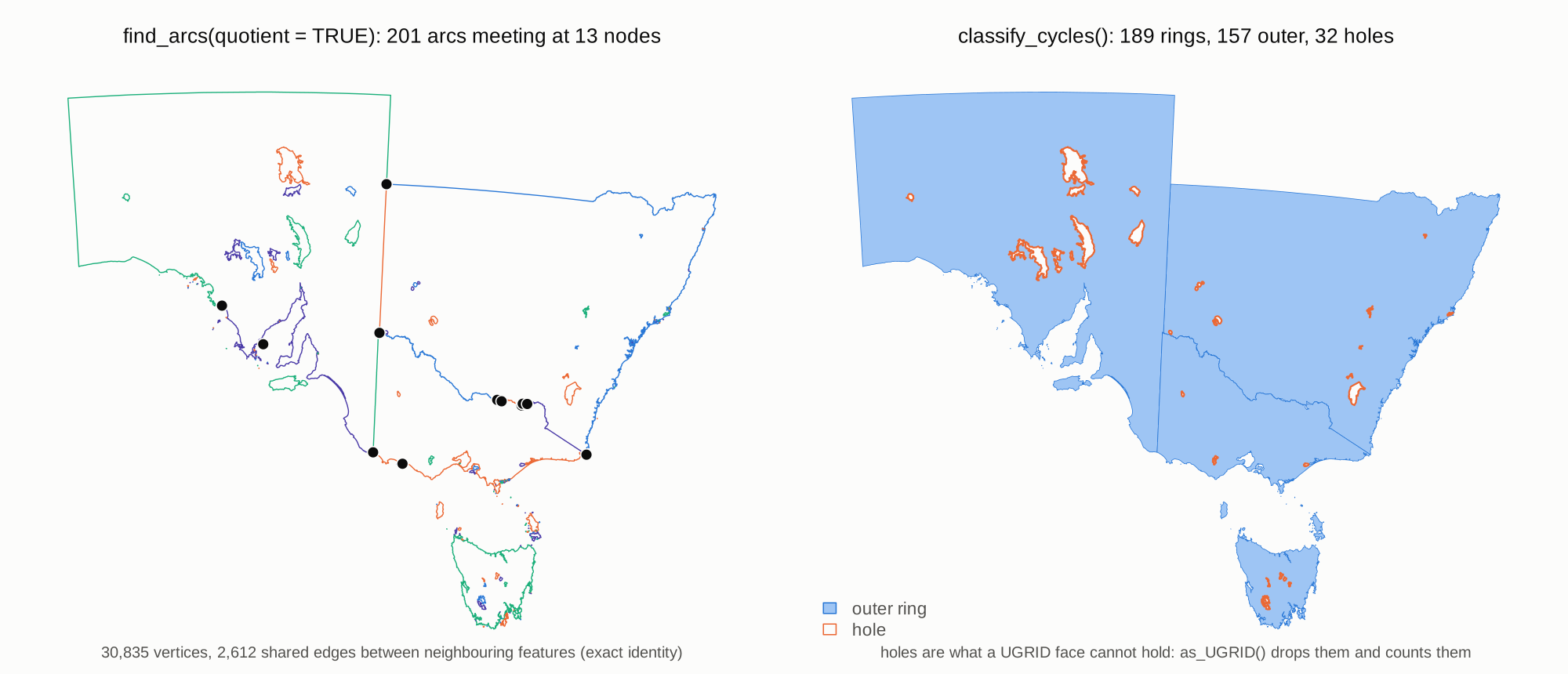

inlandwaters (in silicate) has six features with 189 rings, 32 of them holes, and neighbouring states that share long boundaries vertex for vertex. After merge_coincident() those boundaries are the same vertex pairs, so the quotient graph walks each shared boundary once:

x <- wk::as_wkb(sf::st_geometry(silicate::inlandwaters))
pool <- merge_coincident(establish_topology(x))
find_arcs(pool, quotient = TRUE)    # 201 arcs
find_nodes(pool, quotient = TRUE)   # 13 nodes where three or more edges meet
classify_cycles(pool)               # 189 rings: 157 outer, 32 holes
inlandwaters arcs, nodes and rings

Without quotient = TRUE every vertex inside a shared boundary has degree 4 (each feature carries its own copy of the edge), so find_nodes() returns 2,619 nodes and find_arcs() 5,418 arcs. Use the quotient graph for coverages; the default counts every segment.

Vertex identity

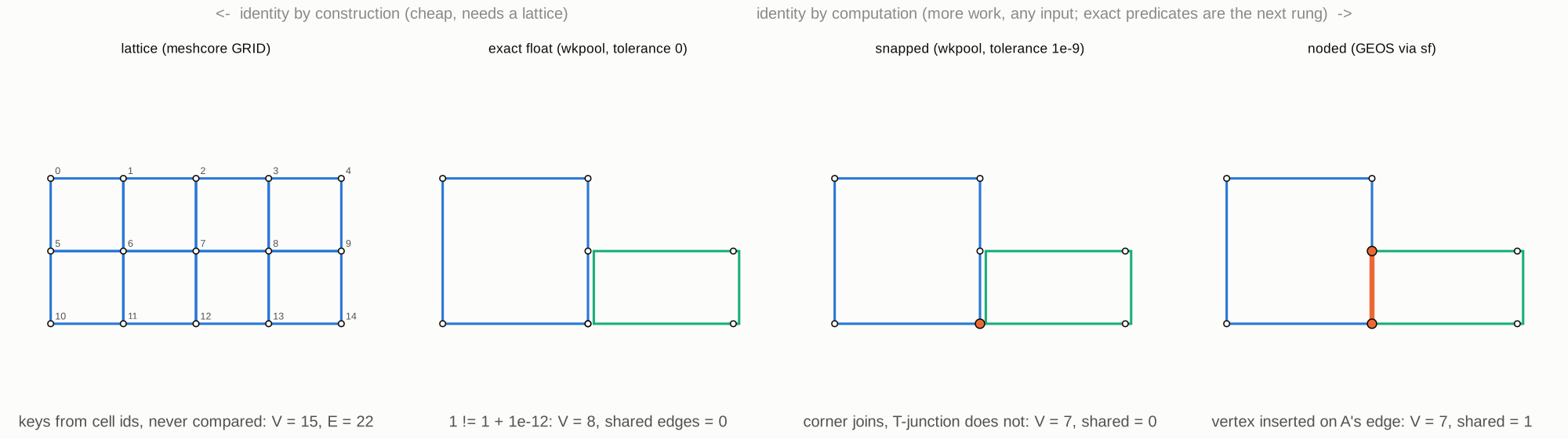

wkpool covers two rungs of a ladder of ways a vertex can be “the same”: exact float (merge_coincident(tolerance = 0)) and snapped (tolerance > 0). It does not node: a vertex lying on another feature’s edge stays a T-junction until something like GEOS inserts it. Above exact float, a lattice (a raster, a discrete global grid) can give identity by construction, with no comparison at all.

the vertex identity ladder

Performance

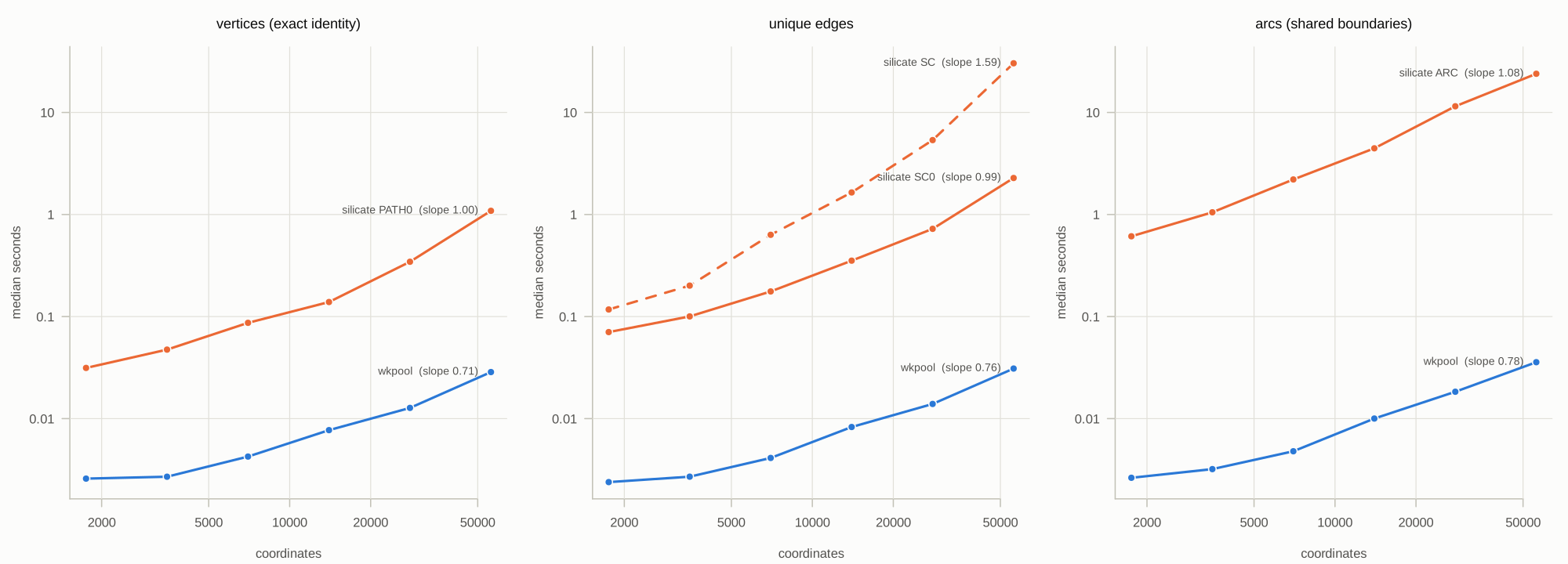

All pipelines scale linearly. Against silicate on the same inputs (bench/README.md has the full tables), wkpool is 1.6 to 29 times faster than PATH0() for vertices and 12 to 1300 times faster than SC() and ARC() for edges and arcs.

silicate vs wkpool scaling on hexagon coverages

wkpool is machinery: silicate’s models and sc_* verbs can sit on it, and so can other mesh models. Work in progress on top of it:

  • silicate, branch silicate2: the UGRID model and a model zoo, with polygons and lines routed into UGRID through wkpool.
  • meshcore (working name): one verb set for rasters and discrete global grids, whose as_wkpool() hands over an already-merged pool.

Key decisions

Decision Choice Rationale
Pool scope Per-vector, sidecar attribute No wk core changes needed, n-geometry ready
Snapping Observe don’t correct Represent truth, fixing is separate
Vertex identity Minted .vx integer Survives subset, lighter than UUID
Segment identity Derived from vertex pair No ID to track, tuple IS identity
Primary vctr Segments Geometry is what you subset, vertices follow
Foundation vctrs Principled combine/subset, tidyverse alignment

Next steps

Code of Conduct

Please note that the wkpool project is released with a Contributor Code of Conduct. By contributing to this project, you agree to abide by its terms.
