7  Worked cases

Each case below is a real dataset, chosen because it sits somewhere specific in Table 3.1. Where numbers are quoted they come from the original analyses cited in README.md.

7.1 CryoSat-2 sea ice thickness: cryptic curvilinear

Stored: 2D lon and lat, 316 x 332, no CRS. Real grid: regular in EPSG:3412. Case: E.

This is the file from Chapter 1 (CS2WFA_25km_201007.nc, Zenodo record 7327711). The detection runs in three steps. A geometric summary of the coordinates (a centre, an extent and a principal-axis analysis on the unit sphere) shows circumpolar Antarctic data with no dominant direction, which points at a polar azimuthal family. Projected into EPSG:3412, rows are horizontal to within 13 m and steps are 25000 m within about 70 m, a deviation of 0.3%. A genuinely curvilinear grid would deviate by 10 to 100%. The recovered extent was within 33 m of the published NSIDC extent, and snapping to multiples of 25 km gives it exactly.

The real file deviates more than the simulation in Table 6.1 (70 m rather than 1 m), most likely because its coordinates went through a different processing chain. Either way the gap to “not regular” is two orders of magnitude.

7.2 AVISO altimetry: a Mercator grid in longitude and latitude

Stored: 1D longitude (1080, uniform 1/3 degree) and 1D latitude (915, varying). Real grid: regular in Mercator. Case: D.

The file looks rectilinear and most tools treat it so. Converting latitude to Mercator y makes the steps constant to 1e-12 (Figure 3.2), and the grid is six numbers in a Mercator CRS with a resolution of about 37 km at the equator. Treating it as plain longitude and latitude is not wrong for indexing, but it hides the metric properties the producer actually used.

7.3 MUR GHRSST: degenerate rectilinear with noise

Stored: 1D lon (36000) and lat (17999) as 32-bit floats. Real grid: regular in longitude and latitude at 0.01 degree. Case: C.

A global grid at 0.01 degrees should have 36000 by 18000 cells. This one has 17999 rows: a half row is missing at each pole. The stored longitudes are offset from cell centres, the 32-bit values are noisy (Figure 3.1), and the global attributes claim ranges of -180 to 180 and -90 to 90 that the coordinates do not match. GDAL builds a geotransform from the 1D axes, close to but not exactly the tidy grid. A tidy version can be assigned without touching the data:

vrt://FILE.nc?sd_name=analysed_sst&a_srs=EPSG:4326&a_ullr=-180,89.995,180,-89.995&a_offset=25&a_scale=0.001

The a_scale and a_offset here also convert the packed integers to degrees Celsius rather than kelvin, replacing the file’s own scale and offset. The choice of extent is a judgement made by a person, which is the point: the arrays alone do not settle it.

7.4 Three CORDEX Antarctic files: one domain, three frames

The CORDEX Antarctic domain (ANT-12) is a good test because three models on the same domain store their grids in three different ways.

Table 7.1: Three files on one domain.
File Regular frame CRS in file Earth model Notes
HCLIM43-ALADIN projected metres (stereographic) yes sphere, radius 6371229 m large false easting and northing
RACMO24P-NN rotated longitude and latitude (rlon, rlat) yes (rotated pole) sphere, 6371000 m the well-made file
MAR313 projected kilometres (stereographic) broken WGS84 ellipsoid needed repair

All three also carry 2D geographic lon and lat, so all three look curvilinear to a reader that prefers those arrays. None of them is.

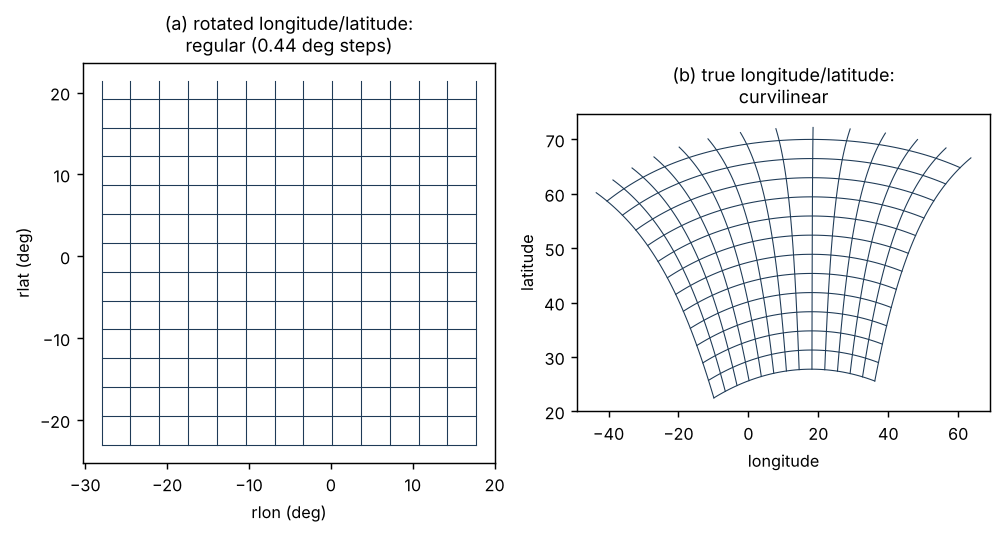

Figure 7.1: A rotated-pole grid. The pole is the one used by EURO-CORDEX (39.25 N, 162 W) and the domain is illustrative, not one of the files above. (a) In rotated coordinates every row and column is straight and evenly spaced. (b) In true longitude and latitude the same grid is curvilinear.

RACMO is regular in rotated longitude and latitude, 0.1 degree steps, with native rlon running from 143.95 to 209.95 across the rotated antimeridian. There is no projected frame in which it is regular, so no amount of fitting stereographic projections helps; a blind fit floored at about 90 km. The regular frame is the rotated angular one, and metres are a choice imposed later. This is the clearest single example that longitude and latitude are compatible with a regular grid, and that being in degrees does not make a grid curvilinear. As Chapter 5 showed, GDAL’s multidimensional reader gets it right with no options; the classic reader needs two.

Two lessons came out of RACMO specifically. Do not reproject the 2D arrays into the rotated frame to “recover” the axes when the axes are on disk: reprojection wraps longitudes to -180 to 180 and shatters the extent. And wrap angular differences before testing regularity (Chapter 6).

HCLIM declares its stereographic CRS. The point of interest is the Earth model: fitting on an ellipsoid left a residual floor of about 1.1 km that never reached noise, while a sphere collapsed it to float32 noise (about 0.4 m). The fit can tell a sphere from an ellipsoid. It cannot recover the latitude of true scale, which only rescales the grid; reading it from the file gave 11000 m cells, while assuming the domain-typical -71 gave 10700 m, a 2.8% error that is exactly the scale ratio between the two.

MAR is the broken one, and its four defects are a useful checklist:

  1. the data variable’s grid_mapping named “Polar Stereographic”, but the mapping variable was called stereographic, so GDAL dropped the CRS with no warning;
  2. the mapping had no grid_mapping_name and used WKT-style parameter names, so a CF reader rejects it even with the reference fixed;
  3. latitude_of_projection_origin was 90 for an Antarctic grid;
  4. an authority attribute claimed EPSG:3031 with lon_0 = 0, but the coordinates fit uniquely with lon_0 = 20, the convention in the domain.

Because MAR’s x and y axes are on disk, they pin the scale, so here the latitude of true scale is recoverable: the fit had a sharp minimum. The repair recipe is in Appendix B. One more detail: MAR’s axes are in kilometres, and GDAL rescales them to metres only once a CRS resolves. With the broken mapping, the same bytes give an extent a thousand times smaller.

7.5 GOES-16 ABI: coordinates without their frame

Stored (original NOAA netCDF): 1D x and y as packed scan angles, a goes_imager_projection variable with the satellite height and longitude. Stored (Earthmover’s icechunk copy): the same x and y as float64 radians, repeated in four time partitions; the projection is not carried with them. Real grid: regular in scan angle, and so in PROJ’s geos. Case: B as published; E3 after conversion.

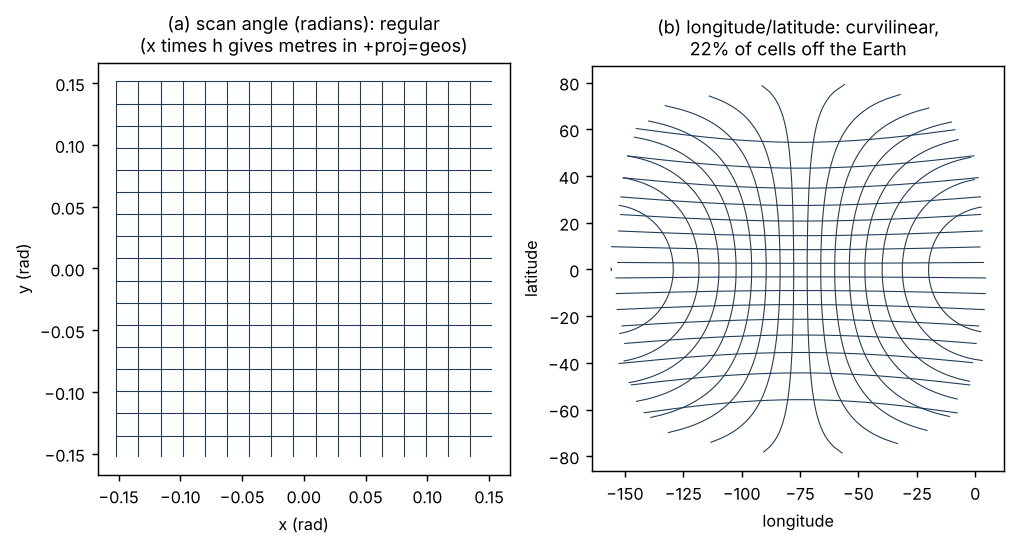

Figure 7.2: The GOES-16 full disk fixed grid, 5424 x 5424 at 56 microradians (about 2 km at the sub-satellite point). (a) In scan angle the grid is regular. (b) In longitude and latitude it is curvilinear, and about a fifth of the cells are off the Earth entirely.

GDAL reads the original file from object storage correctly: it finds the projection variable, multiplies scan angle by the perspective point height (35786023 m) and builds a geotransform in +proj=geos +h=35786023 +lon_0=-75 +sweep=x. In the Zarr copy, the coordinates survive and that step does not. The first three x values, -0.15184399, -0.15178799, -0.15173199 radians, are correct and meaningless without the frame.

The size arithmetic is the same entropy argument at a larger scale: 5424 float64 values per axis, two axes, four partitions, against six numbers stored once. And a reader who reaches for the 2D longitude and latitude instead sees a curvilinear grid with a large region of undefined cells (Figure 7.2 b), when the grid is as regular as a GeoTIFF.

7.6 NEMO ORCA: genuinely curvilinear

Stored: 2D nav_lon and nav_lat. Real grid: curvilinear in every frame. Case: H.

The ORCA family of ocean model grids is regular-like in the Southern Ocean and tropics but deforms in the north so that the grid’s singular points sit on land: a tripolar grid, with two northern poles in North America and Asia plus the geographic south pole. No projection makes these arrays regular. They are the grid, and treating them as anything else loses information. (Note that ORCA is sometimes described as a rotated-pole grid. It is not; the northern poles are moved by the grid construction, not by rotating the sphere.)

7.7 VIIRS level 2 swath: curvilinear, but with structure

Stored: 2D geolocation arrays from the instrument. Real grid: curvilinear; follows the scan geometry. Case: H.

A swath is not a reprojected regular grid. Scan lines are not parallel, cells grow toward the swath edges, and the bow-tie effect duplicates coverage between scans. Still, the frame matters. A principal-axis analysis of the swath boundary on the unit sphere found a strongly elongated shape (85% of variance on the first axis) with a ground track bearing of about 12 degrees. An oblique Mercator aligned to that bearing turns the swath into a strip about eleven times longer than it is wide. It is still curvilinear, but it is now easy to subset, tile and plot.

The same analysis exposed a classic trap: the naive mean of the boundary longitudes, for a swath crossing the antimeridian, put the centre at (-84.1, -18.3); the spherical centroid was at (-113.6, -20.8).

7.8 OISST: when the frame does the statistics

Stored: 1D longitude and latitude, quarter degree. Real grid: regular in longitude and latitude. Case: C.

This case is about question two doing real work. A daily mean sea surface temperature over a latitude band needs an area-weighted mean, because longitude and latitude cells shrink toward the poles. There are three ways to get it:

  1. compute cos(latitude) weights and apply them by hand;
  2. use xarray’s weighted() with those weights;
  3. warp the data onto a Lambert azimuthal equal-area grid of similar resolution and take a plain mean.

In the original experiment all three agreed. The third needs no knowledge of weights at all: in an equal-area frame every cell has the same area, so an unweighted mean is the area-weighted mean. The frame carries the correction.

The claim that the warp result matched “exactly” needs care before it is quoted. A warp resamples, so cells along the band edges and coasts are partly in and partly out, and the agreement should be stated with the tolerance actually observed. The code is worth rerunning and publishing alongside this section.
